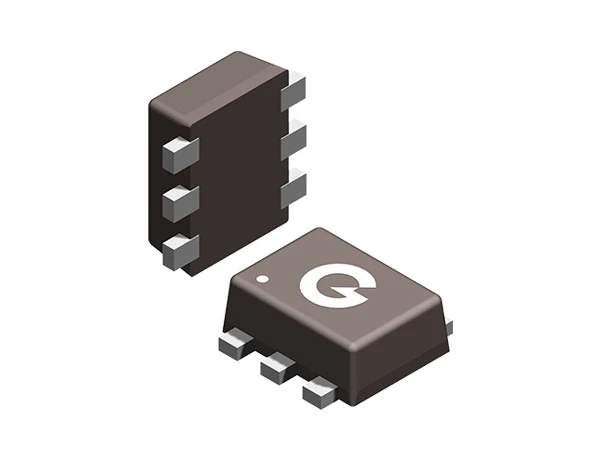

0.75A, 20V, 0.25W, N Channel, Dual MOSFETs
| Package | SOT-563 |
| AEC Qualified | NO |
| Pb Free | YES |
| Halide free | YES |
| Reach | YES |
| RoHS | YES |
| Marketing Status | Active |
| Configuration | Dual |
| Channel Polarity | N |
| ESD | Y |
| TJ(°C) max. | 150 |
| TJ(°C) min. | -55 |
| PD(W) Max. | 0.25 |
| V(BR)DSS(V) Min. | 20 |
| VGS(V) Max. | ±12 |
| ID(A) Max. | 0.75 |
| IGSS(uA) Max. | ±20 |
| VGS(th)(V) Max. | 1.1 |
| RDS(on)(mΩ)@ 10V Typ. | / |
| RDS(on)(mΩ)@ 10V Max. | / |
| RDS(on)(mΩ)@ 4.5V Typ. | 250 |
| RDS(on)(mΩ)@ 4.5V Max. | 380 |
| RDS(on)(mΩ)@ 2.5V Typ. | 300 |
| RDS(on)(mΩ)@ 2.5V Max. | 450 |
| RDS(on)(mΩ)@ 1.8V Typ. | 370 |
| RDS(on)(mΩ)@ 1.8V Max. | 800 |
| ECCN(US) | / |
